Solid Lubrication Bearings Bushing Products Features

1. No need to oil installations, the lling hole processing tank The cost of oil installations, processing fees, assembly fees, the extra cost and time savings can signicantly reduce manufacturing costs.
2. Lower operating costs Substantially reduce the use of lubricants and equipment maintenance costs, while also eliminating the risk caused due to insucient oil supply.
3. The shortening of design time Non-oil can make the design, structure, and greatly simplify and reduce costs, save design time and to obtain significant results, in addition, the use of self-lubricating bearings can also improve the mechanical properties and extend the service life and higher reliability.
4. Lubricating oil recycling and environmental protection No need to waste oil recycling, are environmentally friendly. the self-lubricating bearing parts of the machinery industry, the use of certain generalized. In order to make the mechanical drive is operating normally, a lot of effort. The bearing area is divided into Rolling and plain bearings. Sliding bearings in high-load movement, foreign substances, temperature, fuel, maintenance, imperfect circumstances, can cause galling. Like sliding bearings can not be used under harsh conditions, the solid inlaid metal self-lubricating bearings, wear resistance, resistance to galling, to play the bearings of the due performance, the role of mechanical performance and maintenance-free.

The Matrix Materials for The Self-lubricated Bearings

Material Code	CuZn25Al5Mn3Fe3	CuZn25Al5Mn3Fe3	CuAl9Fe4Ni4Mn2	CuSn5Pb5Zn5	CuSn12	HT250	Gcr15
Density	8.0	8.0	8.5	8.9	9.05	7.3	7.8
Hardness HB	>210	>250	>150	>70	>80	>190	HRC>58
Tensile strength N/mm2	>750	>800	>800	>200	>260	>250	>1500
Elongation%	>12	>8	>15	>10	>8	>5	>15
Coecien of linear expansion 10-5/℃	1.9	1.9	1.9	1.8	1.8	1.0	1.1
Limit Temp ℃	-40~+300	-40~+150	-40~+400	-40~+400	-40~+400	-40~+400	-40~+400
Max.load N/mm2	100	120	150	60	70	80	200
Max.speed (Dry) m/min	15	15	20	10	10	8	5
PV N/mm2 m/min	200	200	60	60	80	40	150
300N/mm2 Permanent deformation	<0.01	<0.005	<0.04	<0.05	<0.05	<0.015	<0.002
Note: We can produce the bearing bushing according to American, Jaoanese, German, Chinese and other standards

The Advantages of the Solid-Lubricant-Inlaid Bearings

1. Properly and simply designed, widely used;
Oil offering system is an energy waste and time waste set in mechanical design. There is no needs for considering the oil-putting set in design when using the solid lubricant bushing so it can save the oil-putting equipment and at the same time it also design the solid-lubricant-inlaid bushing into alt kinds of shapes in order to meet various needs in special places. Using solid-lubricant. inlaid bushing can reduce the costs of the machinery mending and the oiI in wide range.
2. Being used without oil;
Because of the linear coecient expansion of the solid lubricant is bigger than that of the metal basement, when the solid-lubricant-inlaid bushing starts to operate, the oil lm can transfer to the corresponding friction set to make out self-lubricant. So the solid-lubricant-inlaid bushing can be used in places where the oil or grease cannot be added. It can make out the self-lubricant function even though under high load conditions．
3. Low cost for usage;
Traditional mechanical design asks for frequently aiding oil and checking if the oil watch and the oering set are through in certain period. Because adding oil at regular intervals causes the pollution to the machine itself and the nearby surroundings and increase the maintenance cost. And when the self-lubricant is made out, it can not only make the surroundings clean but also decrease the cost of using the Iubricant．
4. The superior functions can be brought into play under high load and low rotati ng speed．
The solid-lubricant-inlaid bushing is based on the high intensity brass that is centrifuge cast. And then make out the loading function. Use special graphite that has good self-lubricant properties as lubricant to make out the self-lubricant so that the bushing has included all of their advantages. It can still bring the superior properties into play even under high load and low rotating speed．
5. The wear resistance can be brought into play even ln places the oil film form into difficulties because of the reciprocating and rocking movement, starting and stopping;
The arrangement principle of the lubricant of the solid-lubricant-inlaid bushing is to ensure that all the parts of the corresponding friction sets have the lubricant function in the operating procession. So the arrangement place 0f the lubricant should be depended upon the operating direction of the corresponding friction sets．
6. Superior chemical resistance and corrosion resistance;
The lubricant of the solid-lubricant. inlaid bushing is made of special graphite and PTFE. It has steady molecule structures. The metal basement can be chosen according to the dierent chemicaI resistance and corrosion resistance of the metal appliance. So the solid-lubricant-inlaid bushing has the superior chemical resistance and corrosion resistance．
7. The products is more competitive, comparing to the similar kinds of products, this kind of products has longer working life and need seldom maintenance. It has longer replacement ci rcle and good properties．

Base Material Interchange

China Brands GB1176-87	Intenational ISO 1338	Germany DIN	Japan JIS	America ASTM(UNS)	England BS	France NF	Applicable conditions
ZCuZn25Al6 Fe3Mn3	GCuZn25Al6 Fe3Mn3	DIN1709 G-CuZn25Al5	H5102 CAC304	B30-92 C86300	HTB2		High-load,low speed Commonly used
ZCuZn25Al6 Fe3Mn3	GCuZn25Al6 Fe3Mn3	DIN1709 G-CuZn25Al5	H5102 CAC304	B30-92 C86300	HTB2		Over high load,low speed, High load used
ZCuSn5 Pb5Zn5	GCuPb5 Sn5Zn5	DIN1705 G-CuSn5ZnPb	H5111 BC6	B30-92 C83600	LG2	CuPb5 Sn5Zn5	Mid-load,low speed
ZCuAl9Fe4 Ni4Mn2	GCuAl10 FeNi5	DIN17656 G-CuAl10Ni	H5114 AlBC3	B30-92 C95500	AB2	CuAl10 Fe5Ni5	Mid-load,mid-speed, Commonly used
GB5675-85 HT250			FC250	ASTM Class40			Mid-load,low speed

Solid Lubricant
Graphite + additive		Excellent resistance against chemical attacks and low friction, Temp limit 400℃			Suit for general machines and under atmosphere
PTFE + additive		Lowest in friction and good of water Lubrication,Temp limit 300℃			Ship, hydraulic turbine, gas turbine etc.
	<0.01	<0.005	<0.04	<0.05	<0.05	<0.015	<0.002

The application of the bronze self lubricating bearing bushes in the injection machine,Rubber machine, Die casting equipments

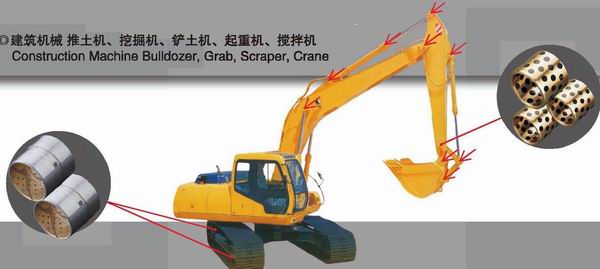

application of the bronze bearing bushing in construction machines ,grab,crane

Please send your drawing with chemical composition and physical parameters .Our price is the lowest . Other specifications and sizes are available upon request. Please contact us or e-mail Johnson@jccopper.com
